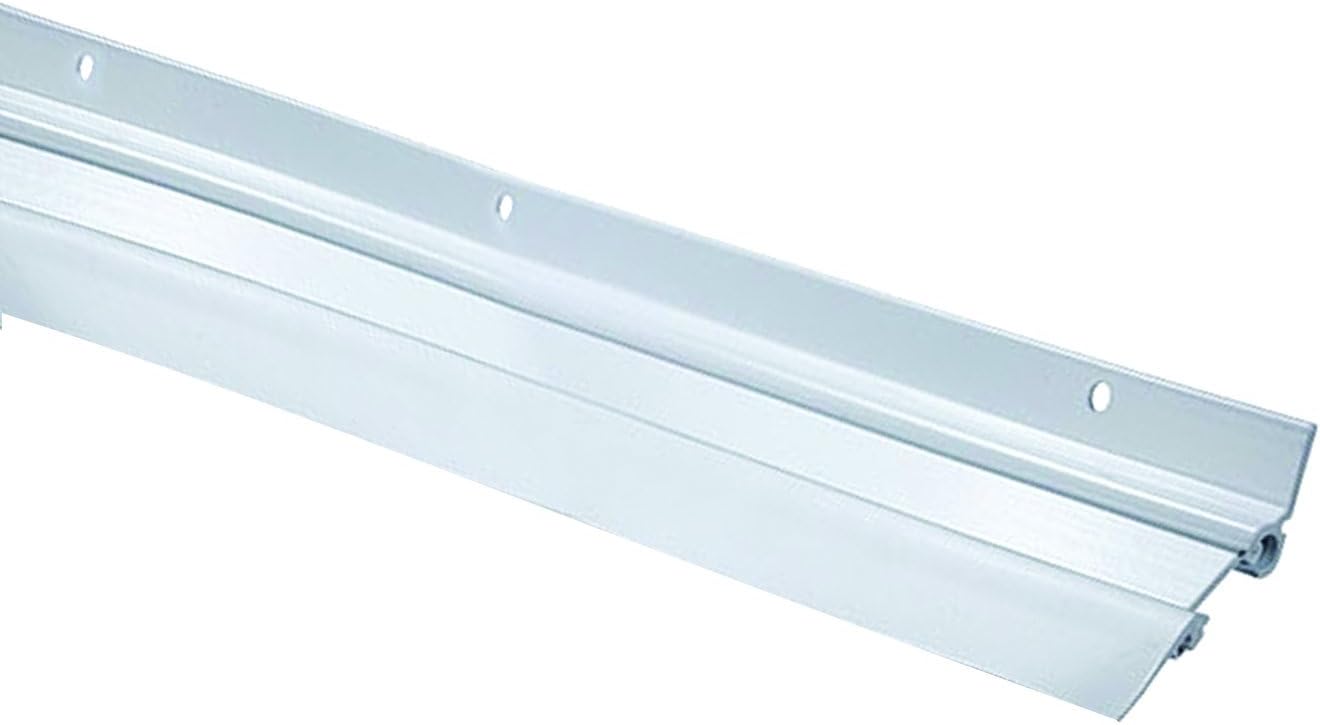

Simply Conserve Automatic Weather Seal Door Sweep, 36″ White (07153-I)

Description

Drafts, dust, noise, and tiny crawlers all look for that sliver of light under your door. The Simply Conserve Automatic Weather Seal Door Sweep, 36 inches in white, model 07153-I, uses a spring-activated mechanism that lifts over carpet when you open the door and drops to seal the threshold when you close it, protecting gaps up to one half inch.

Built with a medium-duty aluminum carrier and a pliable single sealing fin, it is designed for accurate adjustment, smooth action, and reliable everyday use at the bottom of busy entry doors.

Key Customer Benefits

• Cuts drafts and energy waste at the source. The spring-activated seal drops to close gaps up to one half inch, which is exactly where conditioned air escapes. Weatherstripping doors is a proven way to reduce heating and cooling costs, and utility technical manuals document measurable savings from door-sweep measures in real homes.
• Works with carpet and uneven thresholds. The mechanism lifts as you open the door, so it glides over rugs instead of dragging, then settles back down for a tight seal when the door closes. That makes it a smarter choice than fixed vinyl strips for busy entry doors.
• Keeps pests outside where they belong. Public health guidance recommends door sweeps as part of an integrated pest management plan, since mice and insects exploit even small under-door gaps. Sealing that gap is one of the fastest ways to cut down on surprise visitors.
• Blocks dust, light, and some noise for a calmer entryway. By sealing the door-to-threshold gap, a sweep helps reduce nuisance light leaks, tracked-in dust, and sound transmission at the bottom of the door, improving everyday comfort.
• Built to last and easy to dial in. A medium-duty aluminum carrier with a pliable sealing fin stands up to daily use, while slotted screw holes give you fine control during installation for a straight, even seal.
• Straightforward install with included hardware. Each unit comes individually packaged with instructions and Phillips-head screws, so you can measure, cut to length, and mount with basic tools in under an hour.

Product Description

What this door sweep is

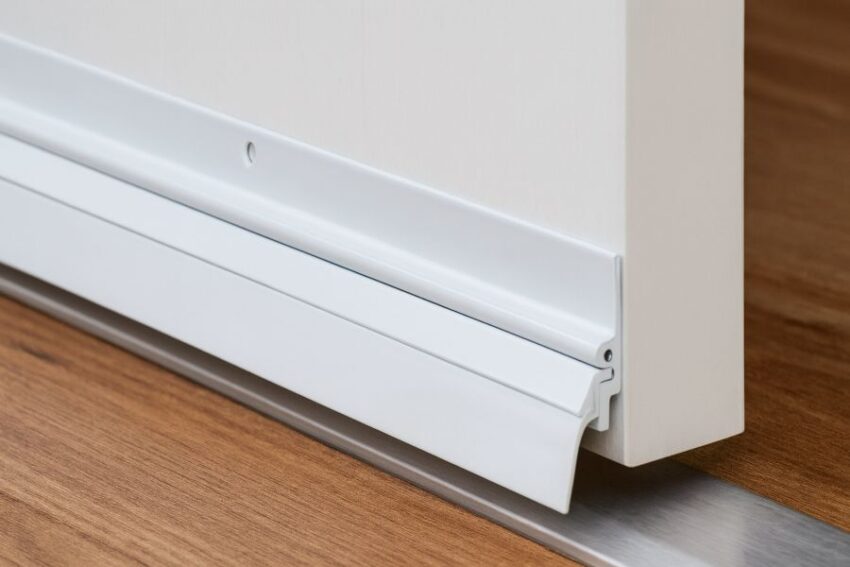

The Simply Conserve automatic weather seal door sweep is a surface-mounted, spring-activated seal designed to close the gap between a door and its threshold, up to one half inch. The carrier is extruded aluminum for durability, and the working edge is a flexible, single sealing fin that conforms to small irregularities at the sill. The product line includes white and brown finishes, with the manufacturer’s current spec sheet listing model 07179-I for white and 07153-I for brown, both in a 36 inch length and a 2.5 inch overall height. Function and dimensions are the same, so color selection does not change performance.

How the spring-activated mechanism works

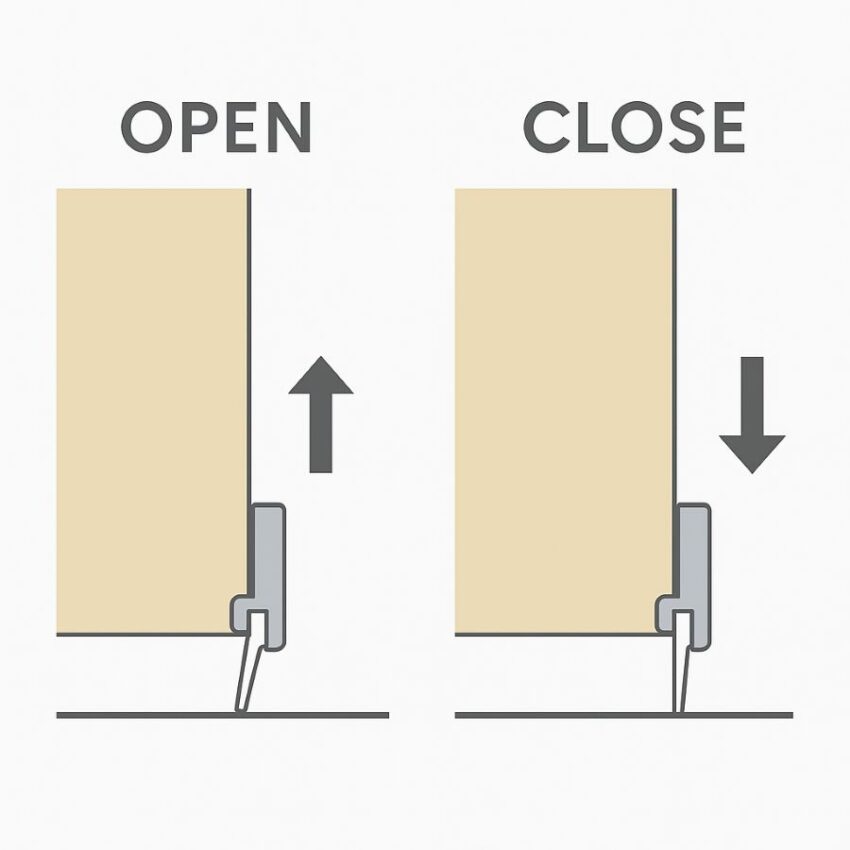

Inside the housing is a simple cam and spring. When you pull the door open, the mechanism lifts the fin so it clears rugs and uneven flooring. When the door closes, the fin drops and lightly compresses against the threshold to form a continuous seal. It is an elegant way to stop drafts without dragging on carpet, which is why many pros recommend automatic sweeps for doors that pass over soft flooring. The manufacturer notes a sealing range up to one half inch, and ships the sweep with slotted screw holes, Phillips-head screws, and printed instructions so you can fine-tune the drop after mounting.

What makes it effective and different

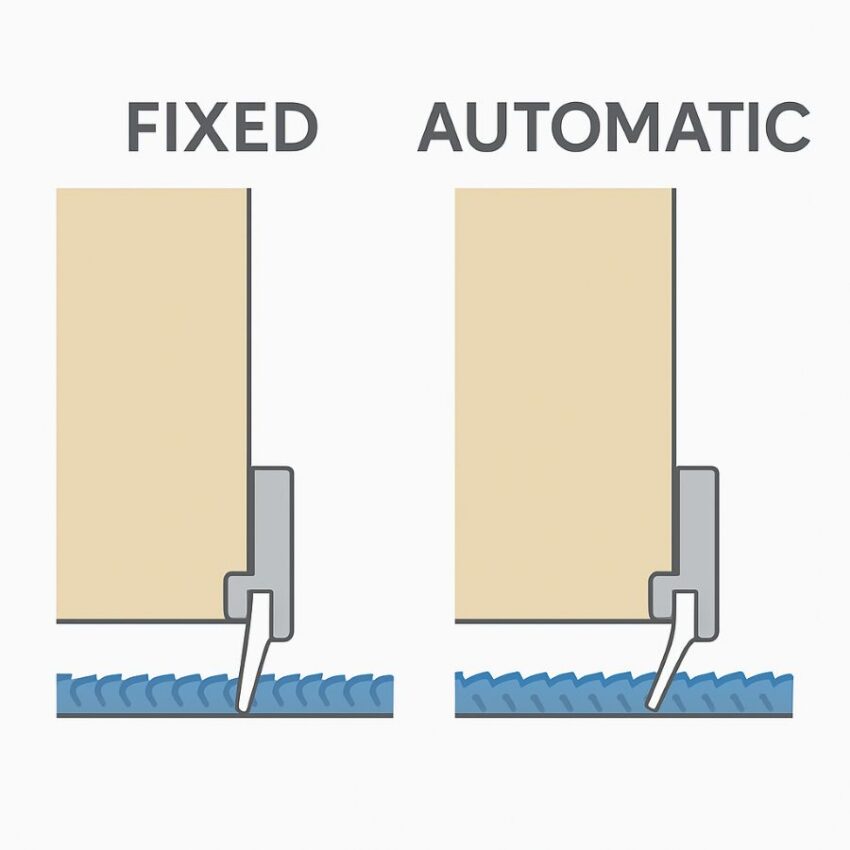

Compared with fixed vinyl strips, a spring-activated sweep maintains contact where you need it, yet stays out of the way while the door moves. That reduces wear, prevents scuffing on floors, and helps the seal last longer. If you are deciding between a sweep and a built-in automatic door bottom, know that routed automatic bottoms can offer a very high-end seal but typically require carpentry and routing. A surface-mounted automatic sweep like this one delivers much of the same benefit with simpler installation, a sensible choice for most homes and small facilities.

For comfort and health, closing the under-door gap does more than block cold air. Public health guidance includes door sweeps as a standard integrated pest management step because mice and insects use that light line at the sill as a highway. Sealing it immediately reduces pest entry points, along with dust and outdoor noise that tend to leak through the bottom of the door.

Product Specifications

Spec	Details
Brand	Simply Conserve by AM Conservation Group.
Model	White finish sold as 07153-I on some marketplaces. Manufacturer sheet lists white as 07179-I and brown as 07153-I.
Type	Spring-activated automatic door sweep that lifts when the door opens and drops to seal when closed.
Length	36 inches.
Overall height	2.5 inches.
Sealing range	Seals gaps up to one half inch between the door bottom and the threshold.
Carrier material	Medium-duty extruded aluminum.

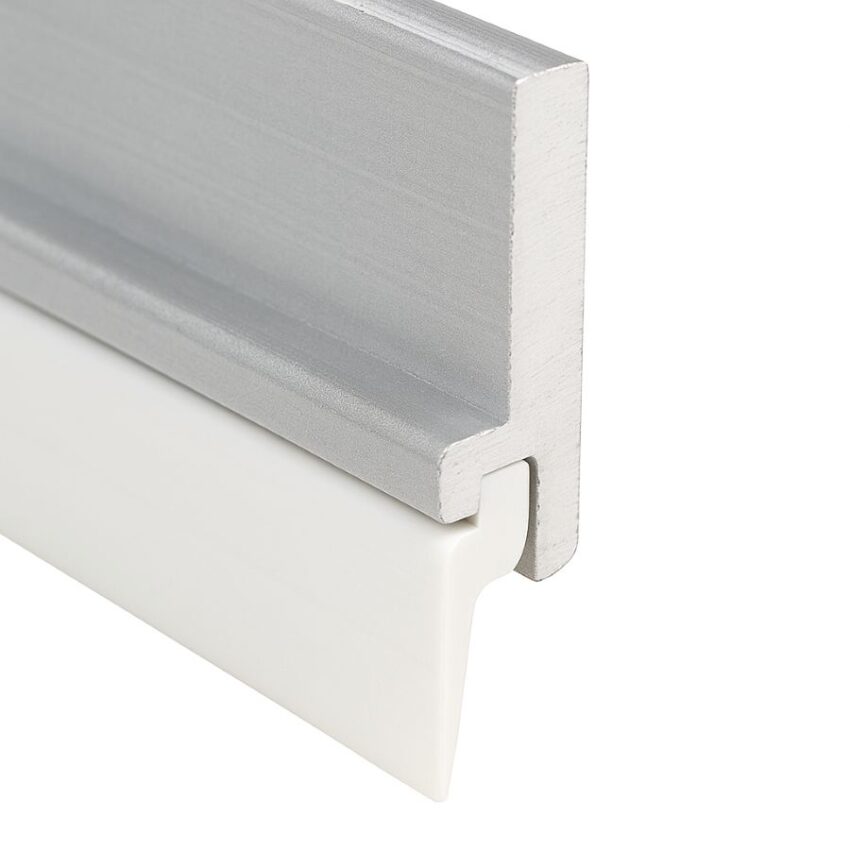

Seal design	Single, pliable sealing fin that conforms to minor sill irregularities.
Mounting style	Surface-mounted, screw-on, with slotted holes for fine adjustment.
Included hardware	Phillips-head mounting screws and printed instructions.
Typical use cases	Ideal where carpet or rugs make fixed sweeps drag. Works over uneven thresholds.
Door swing guidance	Commonly specified for exterior doors that open inward.
Finish	White. Also available in brown with identical specs.
Country of origin	Listed as China on distributor product detail pages.
Cut to length	The manufacturer sheet does not state trimming, however comparable spring-action sweeps specify cutting to length with a fine-tooth hacksaw. Many installers follow the same approach.
Safety and compliance	Non-electrical hardware. The manufacturer sheet does not list third-party certifications for this item. Check with your local authority before adding hardware to fire-rated doors.



How to Use and Install the Spring-Activated Door Sweep

Before you start: confirm the gap and the right fix

Close the door on a bright day and look for light at the threshold. A consistent, narrow line of light usually means a simple sweep adjustment. If you can slide a pencil under the door, the gap is large and you may also need to raise the threshold or add a different style of seal. In pest control, small openings matter. Adult cockroaches can hide in a sixteenth of an inch, and mice can squeeze under a gap the width of a pencil, which is roughly one quarter inch. Door sweeps are a standard exclusion step in integrated pest management for exactly this reason.

When energy savings is the goal, the U.S. Department of Energy also recommends using door sweeps at the bottom of exterior doors as part of a whole-door weatherstripping plan.

This model seals gaps up to one half inch. If your gap is larger after you set the sweep, add or adjust a threshold or consider a different product designed for bigger under-door clearances, such as rodent-proof sweeps rated for one inch or more.

What you will need

Tape measure, pencil, masking tape, fine-tooth hacksaw with a miter box, metal file, drill and bits, Phillips screwdriver, and safety glasses. The sweep ships with slotted mounting holes, Phillips screws, and printed instructions from the manufacturer.

Step-by-step installation for a clean, even seal

1) Dry-fit and mark the height.
With the door closed, hold the sweep against the interior face so the flexible fin rests on the threshold. Use masking tape as a temporary third hand, then scribe a light pencil line along the top edge of the aluminum carrier. The spring mechanism is designed to lift when the door opens and drop when it closes, so you are aiming for light contact when shut, not heavy pressure.

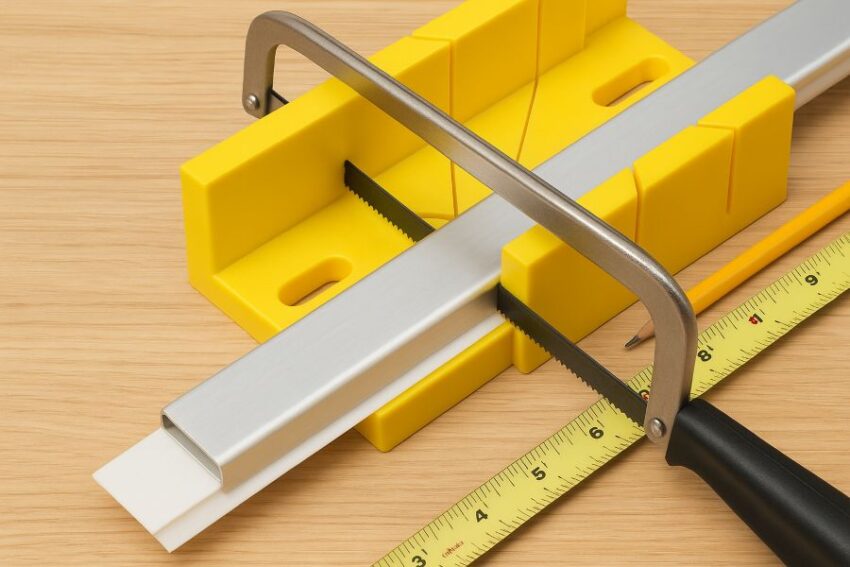

2) Measure, then cut to length: Measure the distance between the two stop moldings on the door frame. For surface-mounted spring-action door bottoms, many installers deduct one quarter inch from that measurement before cutting to avoid binding at the jambs. Cut the aluminum carrier with a fine-tooth hacksaw and dress the cut edge with a file.

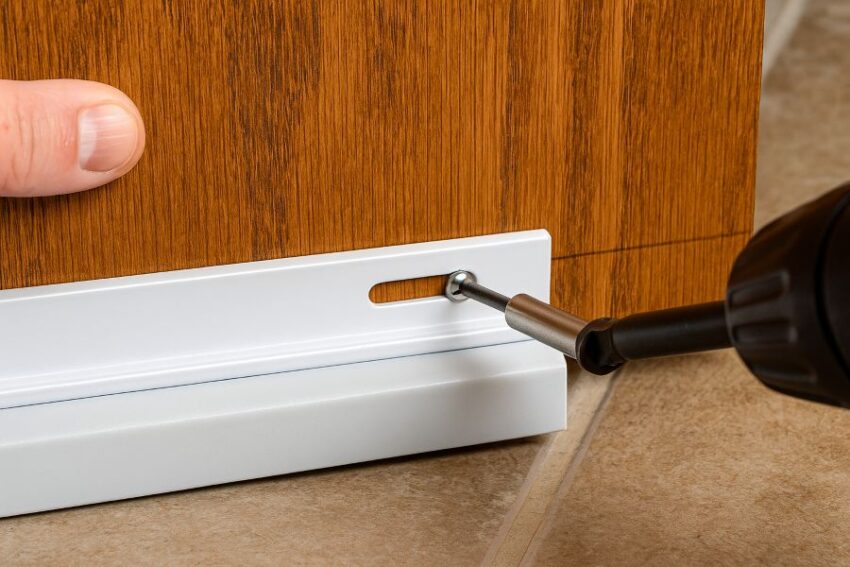

3) Pre-drill and mount loosely: Transfer your pencil line to the sweep if needed, align the housing on the line, and mark the slotted holes. Pre-drill shallow pilot holes. Start the screws at the hinge side first and leave them slightly loose so you can fine-tune the angle across the threshold before tightening. This order gives you a little wiggle room to true the sweep to irregular sills.

4) Set the drop and tighten: Close the door and look for continuous contact between the fin and the threshold. Use the slotted holes to nudge the sweep up or down until the seal just kisses the sill along the full width. Tighten the screws. The Department of Energy’s guidance is helpful here, choose a thickness and position that creates a snug seal without making the door hard to shut.

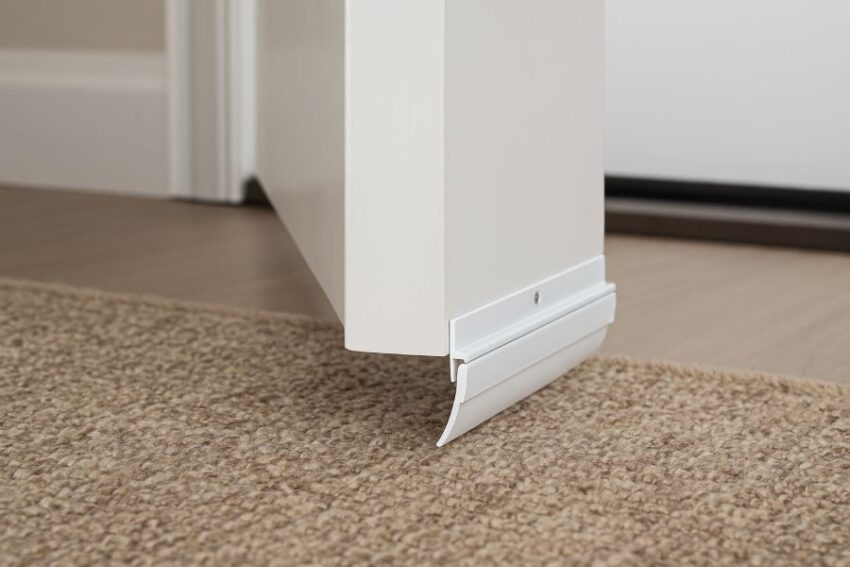

5) Test over carpet or rugs: Open and close the door several times. An automatic sweep should lift as the door opens so it clears rugs rather than dragging. If you feel drag, raise the housing slightly or confirm the rug is not bunched at the swing arc.

6) Final checks for pests and drafts: Turn off the interior lights at night and check for any remaining light leaks at the corners. If you still see light at one end, re-loosen that side, rotate the housing a hair, and retighten. Pests use these tiny wedge-shaped corner gaps as entry points, so it is worth the extra pass to make the line disappear. Routine inspections of exterior doors, and replacement of worn sweeps, are standard best practice in integrated pest management programs.

Common Issues and Solutions

• Gap still larger than one half inch. Pair the sweep with an adjustable threshold, or choose a rodent-proof sweep rated for larger gaps.
• Uneven or cupped threshold. The sweep will only seal as well as the surface it meets. If the sill is crowned or dished, plan on threshold repair or replacement to get a uniform seal. General Department of Energy guidance underscores that weatherstripping should meet tightly all the way around.
• Fire-rated doors. Bottom clearances and hardware changes on fire doors are regulated. A common rule of thumb discussed by inspectors is a maximum three quarter inch undercut, but always follow NFPA 80 and your local authority’s direction. If you are not sure, ask before modifying a rated assembly.

Care and seasonal maintenance

Vacuum dust and grit from the threshold that could abrade the fin. Wipe the sealing edge with mild soap and water, then dry. Recheck screw tightness and alignment every season, especially after big temperature swings or when you swap out entry rugs. Many pest management programs recommend routine inspections of exterior doors to confirm sweeps are present and functioning, because a worn or missing sweep quickly translates into pests and energy waste.

Frequently Asked Questions

1) Does a spring-activated sweep really clear rugs and still seal when shut?

Yes. The Simply Conserve automatic weather seal door sweep uses a spring-loaded mechanism that lifts as the door opens, so it glides over carpet or entry mats. When the door closes, it drops to seal the gap at the threshold. The manufacturer and multiple distributors explain this lift-and-drop action for the 36 inch models.

2) How large of a gap will this model seal?

Up to one half inch between the bottom of the door and the threshold. That specification appears on the current Simply Conserve data sheet and distributor documents for models 07179-I in white and 07153-I in brown.

3) Will it work on an inward or outward swinging door?

This sweep is intended for exterior-facing doors that open inward. If your door opens outward, consider a different mounting strategy or a drip-cap style sweep designed for outswing doors.

4) Can I cut the 36 inch sweep to fit a narrower door?

Most surface-mounted sweeps are trimmed to length with a fine-tooth hacksaw, then de-burred and mounted using the slotted holes for final adjustment. Mainstream installation guides describe cutting sweeps to fit. Trim opposite any moving actuator if present.

5) Will a door sweep really help with bugs and mice?

Yes. Door sweeps are standard in integrated pest management because pests exploit even small under-door gaps. Pest control references recommend sweeps that contact the floor across the full width and suggest checking for light at corners after installation. Mice can pass through roughly a quarter-inch opening and insects need far less. A tight sweep reduces those entry points immediately.

6) Can this reduce energy waste and drafts?

Weatherstripping at the door bottom is a proven energy saver. U.S. Department of Energy guidance recommends using door sweeps with appropriate thresholds and adjusting them so the seal is snug without making the door hard to close. Expect fewer drafts and more stable indoor temperatures after proper installation.

7) Does it help with noise, dust, and light leaks?

By closing the largest opening at the bottom of the door, a sweep can cut nuisance noise, dust, and light leaks along the floor. It is not a substitute for full acoustic door assemblies, yet many homeowners notice the difference right away.

8) Is it okay to install on a fire-rated door?

Use caution. Fire door assemblies have strict clearance rules. NFPA 80 limits the maximum clearance under the bottom of a fire door to three quarter inch and requires that rated doors be maintained per the standard. Always verify with your authority having jurisdiction before modifying a rated opening.

9) Will a sweep stop wind-driven rain or standing water?

A sweep improves the seal at the bottom of the door, but water problems usually require a system approach. If water pools at the sill or the threshold is not flashed and caulked correctly, a sweep alone will not stop leaks. Professionals often pair a quality threshold with a drip-cap style sweep and proper flashing or sill pan to manage rain.

10) What comes in the box and what tools do I need?

Each Simply Conserve automatic door sweep ships with slotted mounting holes, Phillips-head screws, and printed instructions. You will supply basic tools like a tape measure, pencil, drill, and a fine-tooth hacksaw if trimming is needed.

11) Will this work over an uneven threshold?

Minor irregularities are fine. This model uses a pliable single sealing fin and slotted holes so you can nudge the housing up or down and achieve light, continuous contact. If the sill is badly cupped or crowned, guidance suggests repairing or replacing the threshold so weatherstripping meets tightly end to end.

12) Which color code is correct for white vs brown?

In current distributor and program literature, white is listed as 07179-I and brown as 07153-I, both 36 inches long and 2.5 inches tall. Some marketplaces list 07153-I in white, so verify the finish in the listing before you buy.

13) Any tips to avoid drag on carpets or tight doors?

Start with a dry-fit, use the slotted holes to set a light kiss on the threshold, and test several open-close cycles. If you feel drag, raise the housing a touch. The Department of Energy advises choosing a thickness and position that seals without making the door hard to shut.

14) How is this different from an automatic door bottom?

An automatic door bottom is a routed or surface-mounted mechanism with a drop bar that deploys as the door latches. It can provide excellent seals, but it is more complex to install. The Simply Conserve spring-activated sweep gives you the essential lift-and-drop benefit in a simpler, surface-mounted form factor that many DIYers prefer.

Conclusion

If you are tired of drafts, dust, and tiny uninvited guests sneaking in under the door, an automatic weather seal door sweep is one of those small fixes that solves a big, everyday problem. The spring-activated design lifts as the door opens and settles back down when it closes, so it clears rugs gracefully and seals the threshold every time. That action is exactly what the manufacturer specifies for the 36 inch Simply Conserve model, including the ability to seal gaps up to one half inch.

You also get real efficiency benefits. The U.S. Department of Energy recommends using door sweeps with properly selected thresholds, and adjusting them so the seal is snug without making the door hard to close. That simple step supports lower heating and cooling losses at one of the leakiest spots in the envelope.

From a pest control standpoint, closing the under-door gap is essential. Public health pest management toolkits call out door sweeps as a standard exclusion measure because mice and insects exploit even slim openings. Reducing that light line at the sill is one of the fastest ways to cut pest entry points.
